VELOX ribbed monolithic ceiling

VELOX monolithic ceilings are key elements of ribs formed using PERI slab elements.

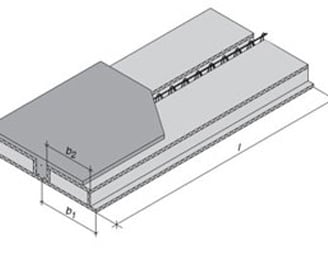

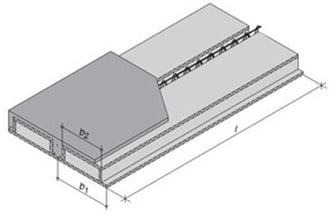

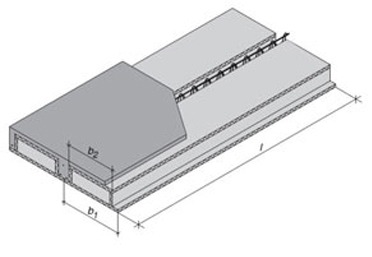

• Ceiling element's basic dimensions: length l = 2000 mm, width 500 mm = b1, b2 = 380 mm

• Module dimensions: length 1830, 1660, 1500, 1330, 1000, 660, 500, 330 mm, width 330 mm = b1, b2 = 180 mm

• Choice of its application depends on the range, payload, ceiling object quality concrete and reinforcement content

• Reinforcement ribs are ceiling VELOX spatial steel beams, respectively.

• Coupled Reinforcement every two meters, i.e. at the connection of ceiling elements for greater spatial bracing object transverse ribs

• Deployment supports - under the front contact elements

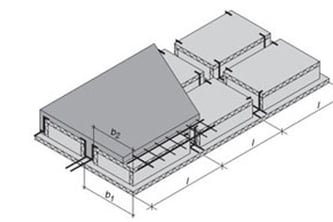

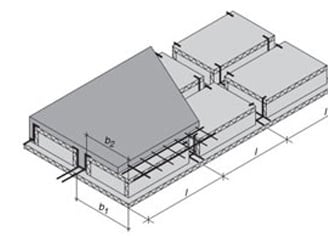

Ceilings created with monolithic reinforced concrete ceiling cassette (non-standard elements)

• Used for ceilings with 'special use' (concert halls, theaters, etc.)

• Transverse ribs are positioned in axial distances of 500, 660, 1000, 1330, 1500, 1660, 1830, 2000 mm

• Choice of application depends on the range, payload ceiling of the building, the quality of the concrete and reinforcement content

• Reinforcing ribs bonded reinforcement supports deployment by the length of the ceiling element
